Connect Excel via XMLA

What this covers

Connecting Microsoft Excel to a Tessallite workspace via the XMLA endpoint, selecting a model catalogue, and building a pivot table from the model's dimensions and measures.

Before you start

• Role required: Analyst (Viewer) or higher.
• You will need: Microsoft Excel for Windows with the Data tab available, your email address, and your Tessallite password.
• You will also need the XMLA endpoint URL. The gateway serves XMLA using one scheme selected at startup by GATEWAY_XMLA_TLS_ENABLED: GATEWAY_XMLA_TLS_ENABLED=false (the default in local Compose) serves plain HTTP, for example http://localhost:8080/api/v1/xmla/; GATEWAY_XMLA_TLS_ENABLED=true serves TLS, for example https://localhost:8080/api/v1/xmla/, and the gateway must have its TLS certificate and key configured. A reverse proxy may terminate TLS and publish an https:// URL while the gateway listener behind it remains plain HTTP. The machine where Excel runs does not determine the scheme; the deployment setting and published URL do.
• The scheme matters. Excel sends your email address and password on this connection, so use https:// whenever traffic leaves the machine. Use the exact scheme configured for the listener; a plain-HTTP listener does not answer https://, and a TLS listener does not answer http://.
• The trailing slash in the URL is required. The connection wizard does not accept the URL without it.
• Windows Authentication is not supported. You must enter your email address and password manually.

Step 1: Open the connection wizard

1. Open Excel.
2. Click the Data tab in the ribbon.
3. Click Get Data.
4. From the menu, select From Database.
5. From the submenu, select From Analysis Services.
6. The Data Connection Wizard opens.

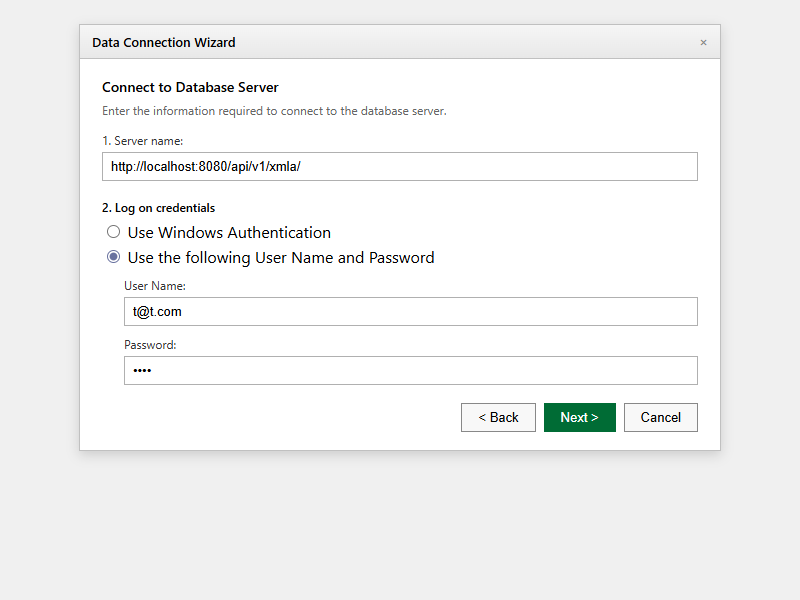

Step 2: Enter the server address

1. In the Server name field, enter the XMLA endpoint URL using the scheme selected by GATEWAY_XMLA_TLS_ENABLED and the URL published by your administrator. For example, use http://localhost:8080/api/v1/xmla/ when the setting is false, or https://localhost:8080/api/v1/xmla/ when it is true.
2. Under Log on credentials, select Use the following User Name and Password.
3. In the User Name field, enter your email address.
4. In the Password field, enter your Tessallite password.
5. Click Next.

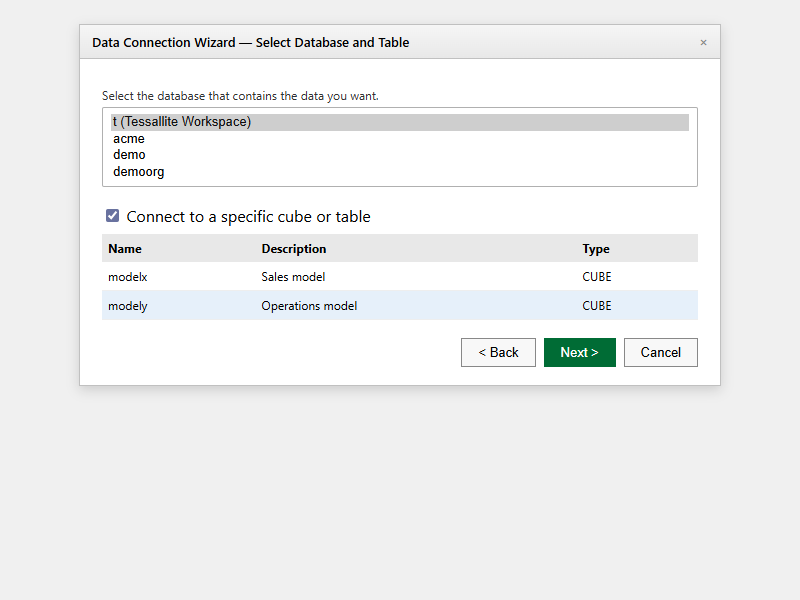

Step 3: Select a catalogue

1. Excel connects to the gateway and retrieves a list of available catalogues.
2. Each model appears twice in the list:

• The plain model name (e.g. orders) — this is the business view, with curated fields and calculated measures.
• The model name with _technical appended (e.g. orders_technical) — this is the unfiltered view, intended for modellers and power users.

1. Select the catalogue you want to connect to. For most purposes, select the plain name.
2. Click Next, then click Finish.

Step 4: Build a pivot table

1. Excel asks where to place the data. Select a cell in your worksheet and click OK.
2. The PivotTable Field List opens on the right side. It shows the dimensions and measures from the selected model.
3. Drag dimension fields to the Rows or Columns area.
4. Drag measure fields to the Values area.
5. Excel queries Tessallite and populates the pivot table with results.

Refreshing the data

Right-click anywhere in the pivot table and select Refresh to retrieve the latest data from Tessallite.

Tenant-specific URL

If your system administrator has set up per-tenant XMLA endpoints, the URL format is:

https://<hostname>:8080/api/v1/xmla/<workspace-slug>

Replace <hostname> with the gateway host and <workspace-slug> with your workspace identifier. This form does not require a trailing slash.

Use the scheme selected by GATEWAY_XMLA_TLS_ENABLED for a directly exposed gateway. If a load balancer or reverse proxy terminates TLS, use its published https:// URL even when the gateway's internal listener uses plain HTTP. Do not infer the scheme from whether <hostname> is localhost; ask your system administrator for the published URL. The wrong scheme either fails to connect or, for a remote plain-HTTP connection, sends your password in the clear.
